5G, 4G (LTE CAT20), Dual SIM, 5 WAN/LAN (10/100/1000), 2 I/O, WIFI 5, GPS, USB
RUTM50000B00
- Regular price
-
$620.00 - Regular price
-
$620.00 - Sale price
-
$620.00

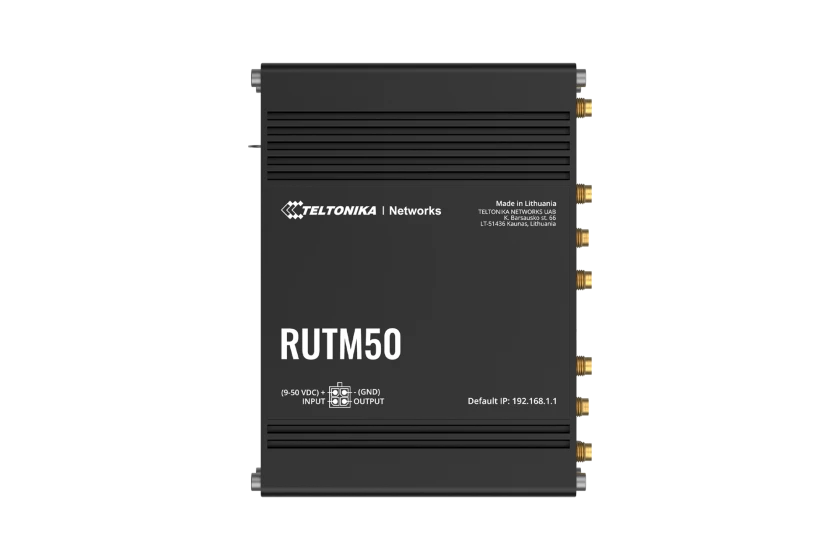

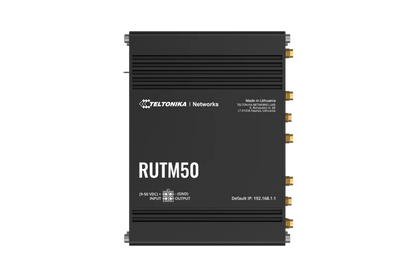

Teltonika RUTM50000000 Model RUTM50 Cellular 5G Router; Speeds of up to 3.4 Gbps; Dual SIM with Auto-failover; Backward Compatible with 4G (LTE Cat 19); For USA and Canada Carriers; Auto APN
Key Features:
- Ultra-high cellular speeds of up to 3.4 Gbps
- Dual SIM with Auto-failover, backup WAN, and other switching scenarios
- Supports both SA & NSA 5G architectures
- Backward compatible with 4G (LTE Cat 19)
- For USA and Canada Carriers
- Included: RUTM50 Router, 18 W USA PSU, 4 x Mobile antennas (swivel, SMA male), 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable), 1 x GNSS antenna (adhesive, SMA male, 3 m cable), Ethernet cable (1.5 m), and SIM Adapter kit
Specifications:
Mobile:
- Module: 5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO) 900, 550Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps
- SIM switch: 2 SIM cards, auto-switch
- APN: Auto
Wireless:
- Wireless mode: 802.11b, g, n, ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
- Wi-Fi users: Up to 150 simultaneous connections
Ethernet:
- WAN: 1 x WAN port (can be configured as LAN) 10, 100, 1000 Mbps
- 4 x ETH ports, 10/100/1000 Mbps
Network:
- Routing: Static routing, Dynamic routing
System Specs:
- CPU: MediaTek MT7621A, Dual-Core, 880 MHz, MIPS1004Kc
- RAM: 256MB DDR3
- FLASH storage: 16MB serial NOR flash, 256MB serial NAND flash
I/Os:
- Input: 1 x Digital Input
- Output: 1 x Digital Output
- I/O juggler: Allows setting certain I, O conditions to initiate event
Power:
- Connector: 4-pin industrial DC power socket
- Input voltage range: 9 - 50 VDC
- PoE (passive): Passive PoE over spare pairs
Other Specs:
- Casing: Aluminum
- Overall Dimensions (WxHxD): 5.19 x 1.74 x 3.74 inches
- Weight: 1.14 pounds
